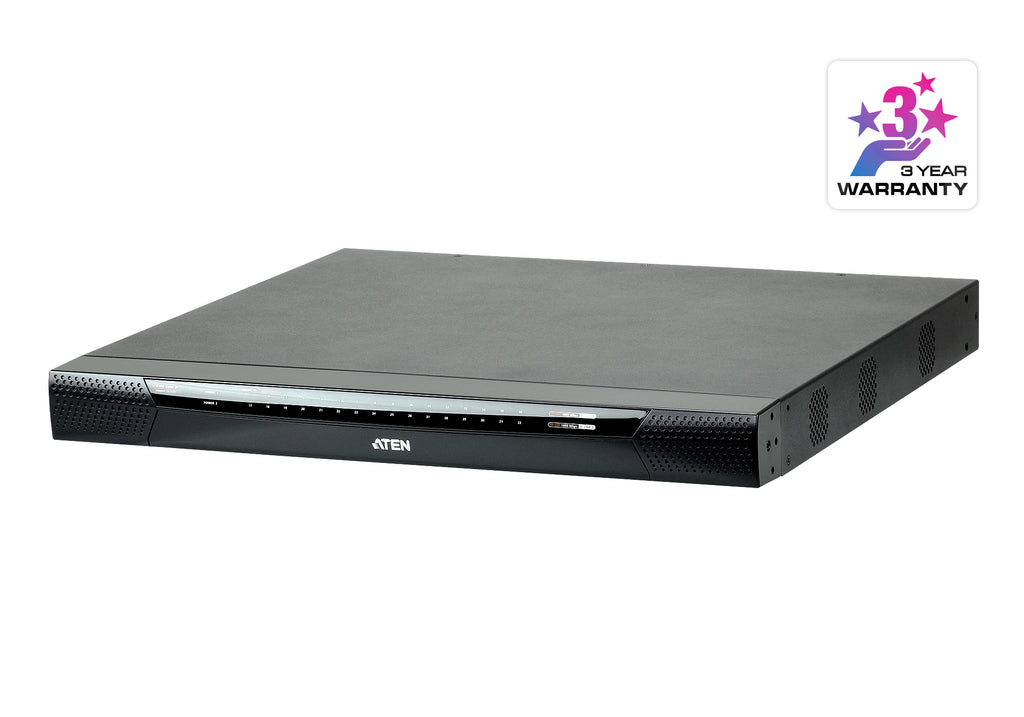

ATEN’s 4th generation of KVM over IP switches exceed expectations. The KN1132V features superior video quality (Full HD resolution of 1920 x 1200) FIPS 140-2 with level 1 security standards and virtual media transmissions at twice the speed. The KN series provides local console and remote over IP access for users to monitor and access their entire data center over a network. In addition it offers out-of-band access with external modem support for BIOS-level troubleshooting when the network is down.

New KN Series Exclusive:
• High grade security – supports FIPS 140-2 level 1 security standards
• Extreme virtual media speed – 2 x faster virtual media transmission speed
• Advanced FPGA graphics processor – with a Full HD resolution of 1920 x 1200

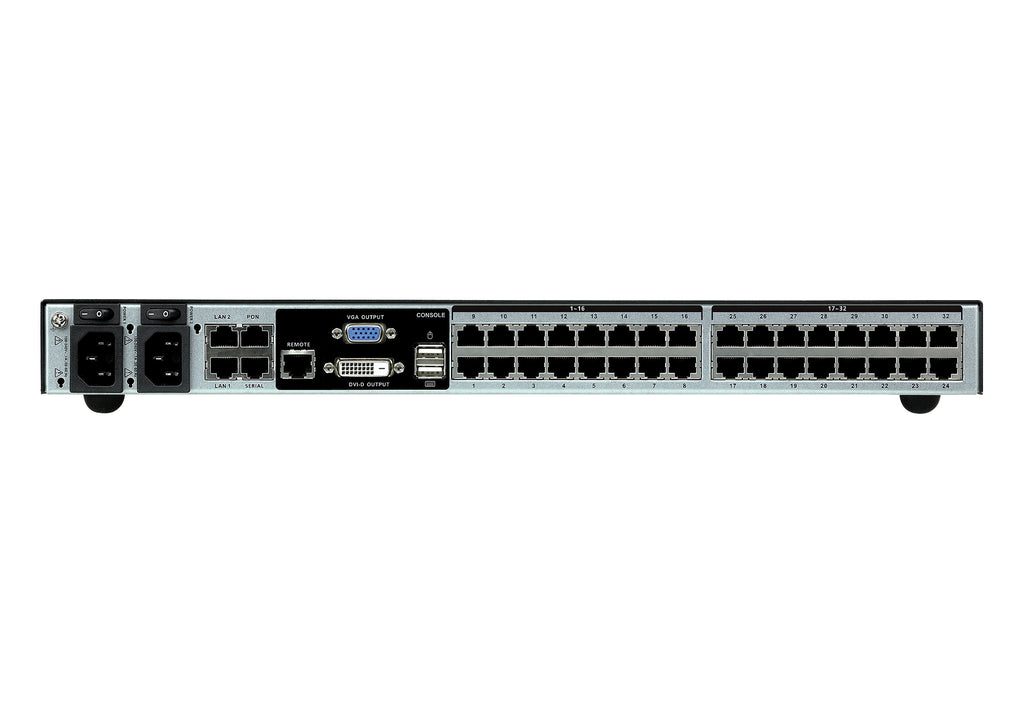

With dual on-board NICs and dual power supplies the KN series are built for reliability to ensure 24/7 availability of remote access to all servers.

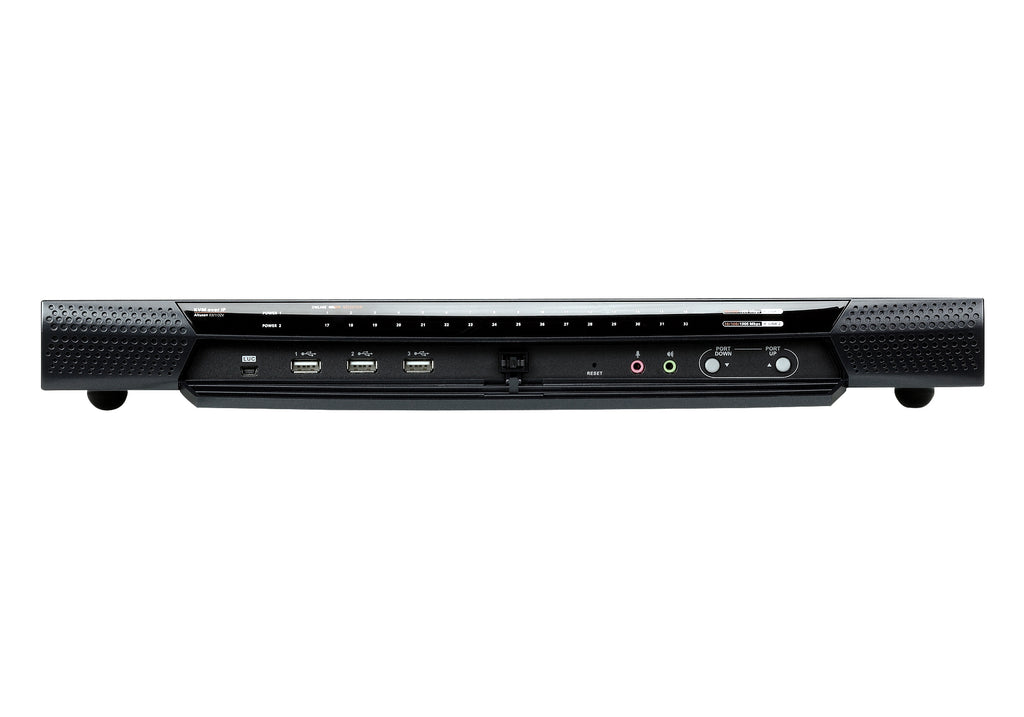

The KN series offers out-of-band (OOB) management that enables IT administrators to manage network devices (e.g. server storage router/switch) in server rooms via management networks that are separate from the main/production networks. So if there’s difficulty in accessing the network devices through the production network the administrators can still access them via the KVM switch. The KVM switch offers several out-of-band access methods such as a direct console connection from a local computer a USB console connection from a laptop a PSTN connection via modem or a dedicated management network connection via the Ethernet (LAN) port.

KN series devices can be integrated into the CC2000 Centralized Management Software. The CC2000 puts administrators in complete control of remote data centers and branch offices no matter where they are in the world – allowing IT administrators to remotely monitor and control all devices on a network including blade servers and virtual machines.

To help you manage and control an entire data center ATEN KVM over IP switches support blade servers and chassis. With powerful features such as Power Association – KVM ports can be associated with ATEN PDU power outlets for power management of servers from the KVM over IP switches’ user interface.

Additional exclusive features of ATEN KVM over IP switches include: a Message Board Panel Array Mode™ Mouse DynaSync™ and the Adapter ID.

A Windows Client and a Java Client are available for remote access. They allow IP connection and login from anywhere over the internet. In addition ATEN also provides an iOS APP - PadClient whose intuitive interface makes it easy to connect to the KVM over IP switch and control computers direct from your iPad. Please visit the PadClient webpage for more information.

ATEN KVM over IP switches save you time and money by allowing administrators to manage their data centers from practically anywhere – minimizing travel and MTTR (Mean Time to Repair) costs ensuring the highest availability for data center services possible.

Diagram

Specifications
