DVI HDBaseT-Lite Transmitter (1080p@70m) (HDBaseT Class B) - VE601T

DVI HDBaseT-Lite Transmitter (1080p@70m) (HDBaseT Class B) - VE601T

DVI HDBaseT-Lite Transmitter (1080p@70m)
(HDBaseT Class B)

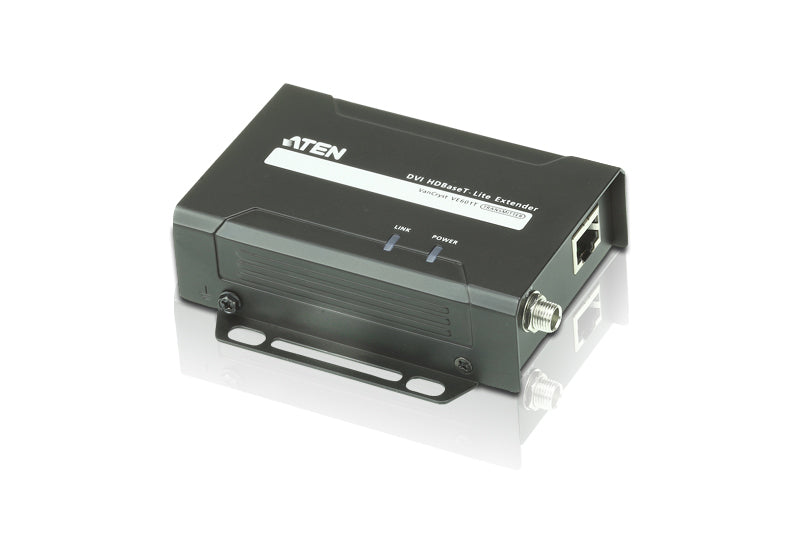

The VE601T DVI HDBaseT-Lite Extender is able to extend a DVI 1080p display up to 70 m using an Ethernet cable. This combination of ATEN and HDBaseT technology even supports sharing 1920 x 1200 media up to 40 m away offering a simple adaptable and cost-effective solution for any professional A/V installation.


The VE601 DVI HDBaseT-Lite Extender is the perfect solution for professional A/V installations that require video signal interference protection such as in medical and military installations. With its lightweight and easy-to-mount design not to mention slip-resistant DC Jack lock mechanism the VE601 can be installed nearly anywhere while ensuring peace of mind with its unerring reliability.

* Compatible HDBaseT Receiver Units: VE601R VE801R



Diagram

VE601T Diagram

Specifications

Video Input

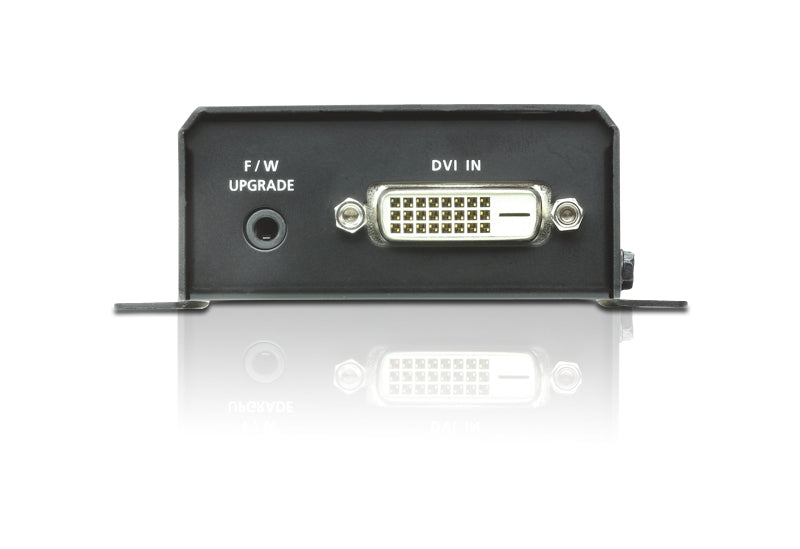

Interfaces 1 x DVI-D Female (White)
Impedance 100Ώ
Max. Distance Up to 1.8m
Video
Max. Pixel Clock 340 MHz
Max. Data Rate 10.2Gbps (3.4Gbps per lane)
Compliance DVI (3D Deep Color)
HDCP compatible
Max. Resolutions / Distance Up to 1920x1200@35 m (Cat 5e/6) / 40 m (Cat 6a/ATEN 2L-2910 Cat6);
1080p@60 m (Cat 5e/6) / 70 m (Cat 6a/ATEN 2L-2910 Cat6)
Connectors

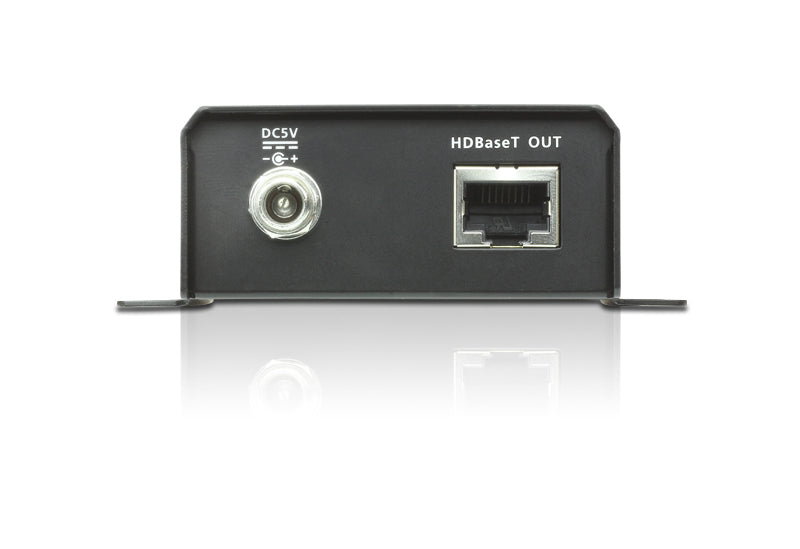

Power 1 x DC Jack with locking
Unit To Unit 1 x RJ-45 Female
Power Consumption DC5V:1.84W:9BTU
Environmental
Storage Temperature -20 - 60°C
Operating Temperature 0-50°C
Humidity 0% - 80% RH Non-condensing
Physical Properties
Housing Metal
Weight 0.25 kg ( 0.55 lb )
Dimensions (L x W x H) with bracket 10.20 x 8.70 x 3.00 cm
(4.02 x 3.43 x 1.18 in.)
Dimensions (L x W x H) without bracket 9.42 x 6.60 x 2.90 cm
(3.71 x 2.6 x 1.14 in.)

$ 128.00

$ 43.96
