USB - PS/2 Converter - CV10KM

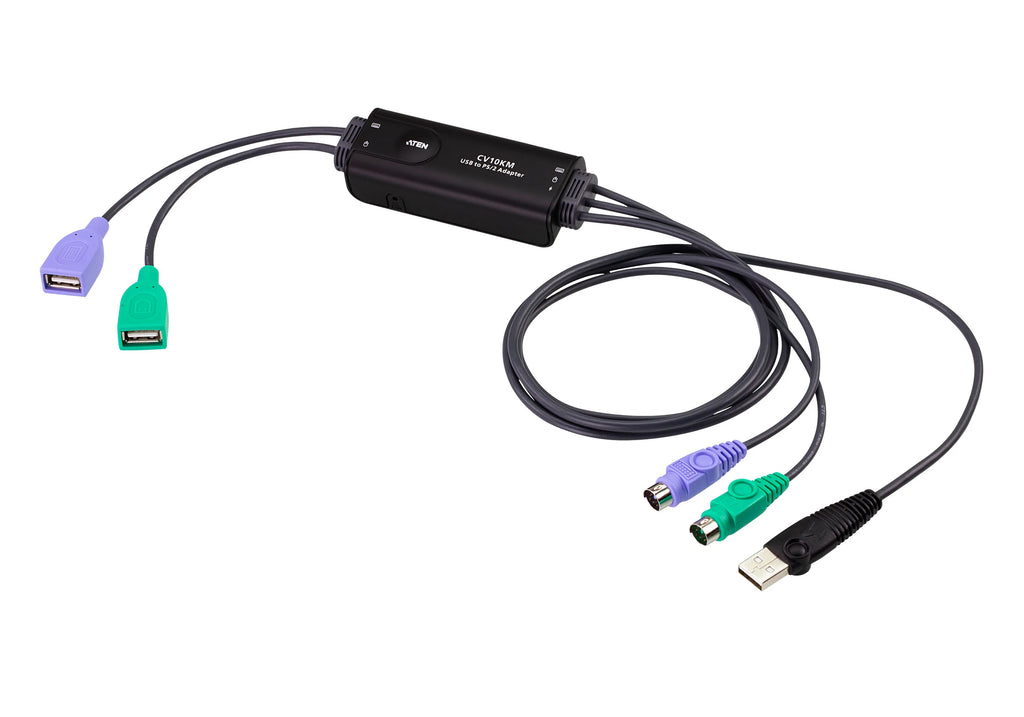

USB - PS/2 Converter - CV10KM

The CV10KM is a USB to PS/2 signal converter that converts USB keyboard and mouse signals into PS/2 signals. When installed with the KE / CN / RCM series products, it eliminates the high cost with replacing KVM switches. With the compact and bus-powered design, the CV10KM fits perfectly into most of the PS/2 computers.



DIAGRAM



SPECIFICATIONS



Connectors
Keyboard 1 x PS/2 6-pin Mini-DIN Male (Purple)
1 x USB Type A Female (Purple)
Mouse 1 x PS/2 6-pin Mini-DIN Male (Green)
1 x USB Type A Female (Green)
Power (Optional) 1 x USB Type A Male (Black)
Cable Length 80cm
Reset Button 1 x Push Button
Platforms Windows/Linux
USB Specification USB 1.1 - 2.0 (Full speed & Low speed) Compatible
Power Mode Bus Powered (via the USB and PS/2 cables)
Power Consumption DC5V:0.2W:5BTU/h

Note:
● The measurement in Watts indicates the typical power consumption of the device with no external loading.
● The measurement in BTU/h indicates the power consumption of the device when it is fully loaded.
Environmental
Operating Temperature 0–50°C
Storage Temperature -20–60°C
Humidity 0–80% RH, Non-condensing
Physical Properties
Housing Plastic
Weight 0.11 kg ( 0.24 lb )
Dimensions (L x W x H) 8.45 x 3.40 x 2.21 cm
(3.33 x 1.34 x 0.87 in.)
Note For some of rack mount products, please note that the standard physical dimensions of WxDxH are expressed using a LxWxH format.
$ 70.35
