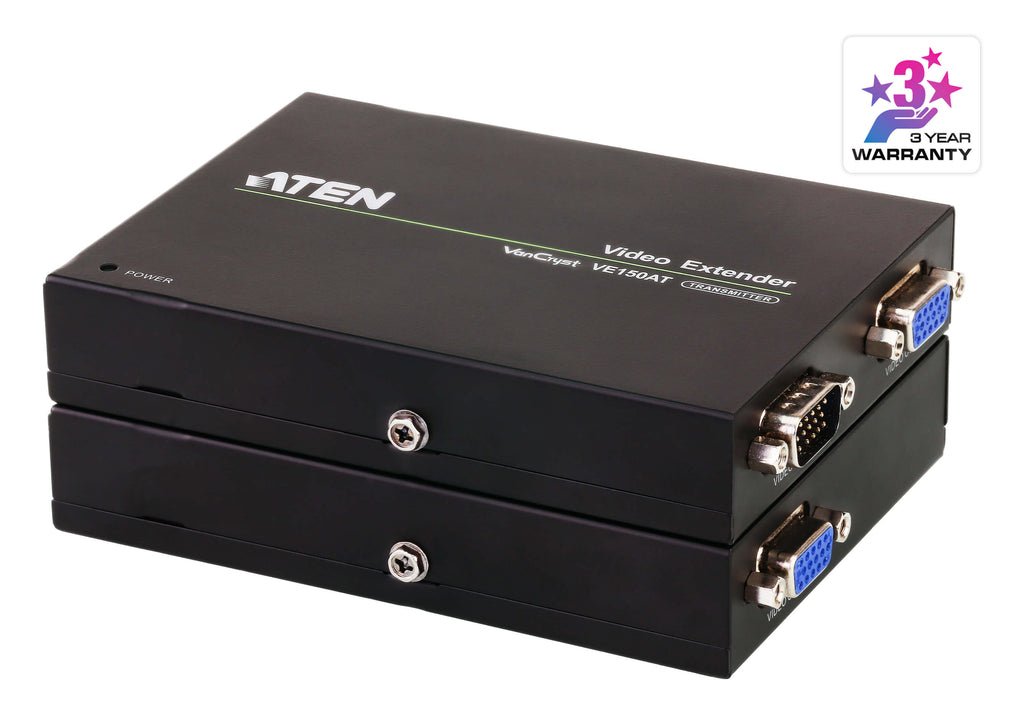

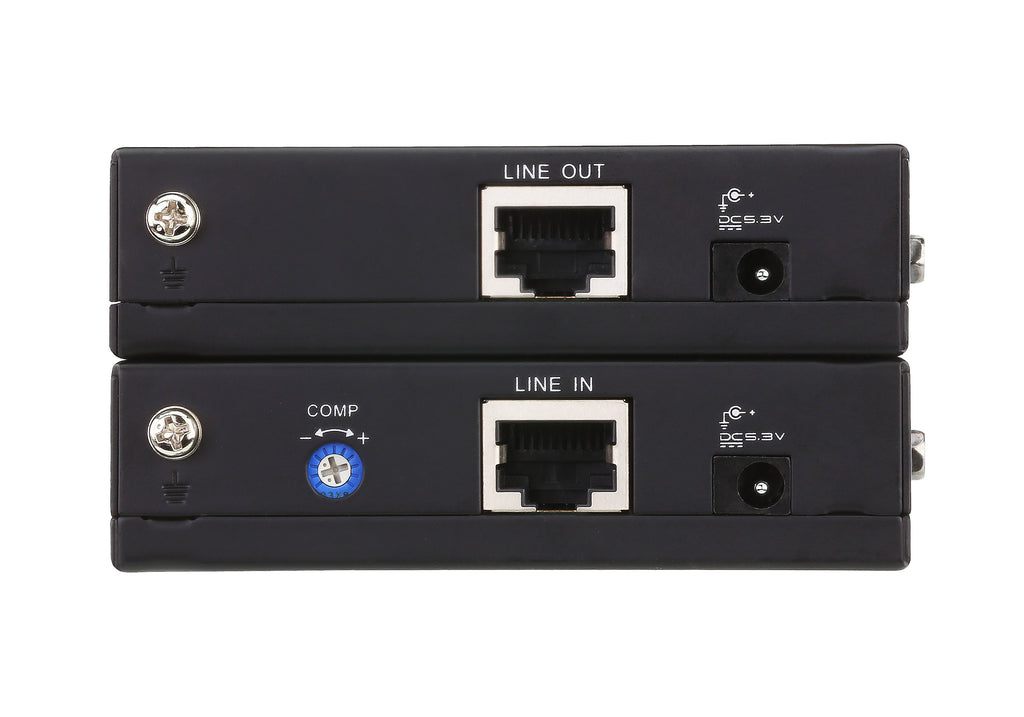

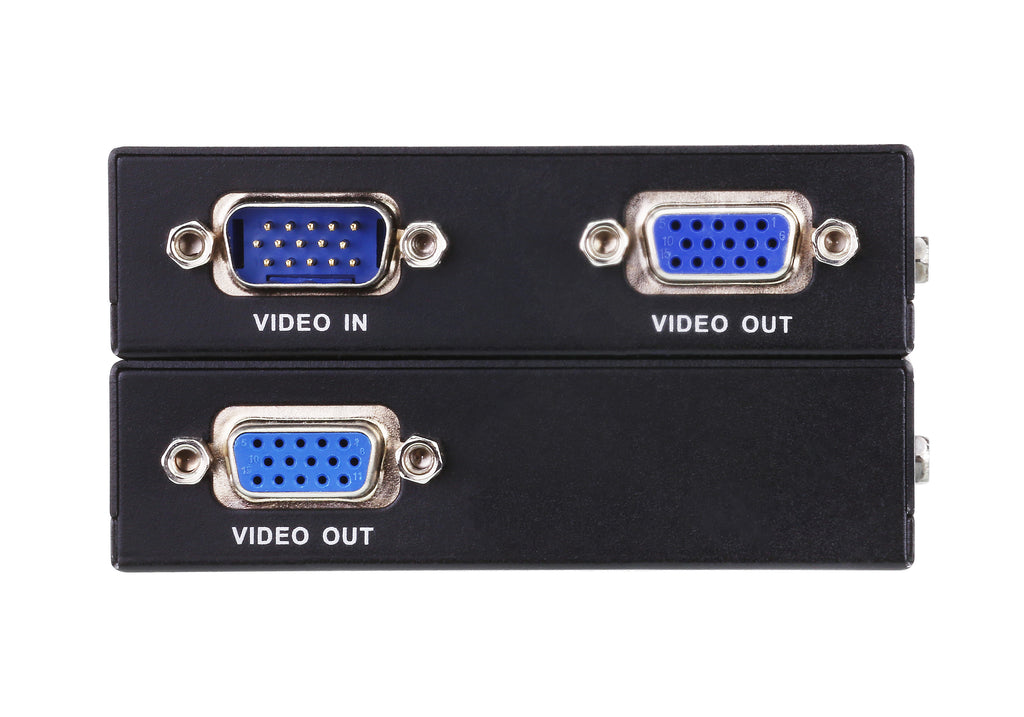

VGA Cat 5 Extender (up to 450ft / 150m - 1280 x 1024) - VE150A

VGA Cat 5 Extender (up to 450ft / 150m - 1280 x 1024) - VE150A

VE150A video extender comprises a local transmitting unit and a remote receiving unit which are connected by standard Cat 5e cables. The distance of both units can be extended up to 150m. It is ideal for factories and construction sites, or any location where the display may need to expose in a risky setting, but you want the system to be kept in a safe location.



Package Contents

  • 1x VE150AT Video Extender (Local unit)
  • 1x VE150AR Video Extender (Remote unit)
  • 2x Power Adapters
  • 1x VGA Cable (1.8 m)
  • 1x Mounting Kit
  • 1x User Instructions

Specifications

Function VE150AR VE150AT
Video Input
Interfaces N/A 1 x HDB-15 Male (Blue)
Impedance N/A 75 Ω
Max. Distance N/A 1.8 m
Video Output
Interfaces 1 x HDB-15 Female (Blue) 1 x HDB-15 Female (Blue)
Impedance 75 Ω 75 Ω
Video
Max. Bandwidth 300 MHz 300 MHz
Max. Resolutions / Distance Up to 1920 x 1200@30m; 1280 x 1024@150m Up to 1920 x 1200@30m; 1280 x 1024@150m
Connectors
Power 1 x DC Jack 1 x DC Jack
Power Consumption DC5.3V:0.87W:8BTU/h

Note:
● The measurement in Watts indicates the typical power consumption of the device with no external loading.
● The measurement in BTU/h indicates the power consumption of the device when it is fully loaded.		 DC5.3V:1.35W:11BTU/h

Note:
● The measurement in Watts indicates the typical power consumption of the device with no external loading.
● The measurement in BTU/h indicates the power consumption of the device when it is fully loaded.
Environmental
Operating Temperature 0 - 50°C 0 - 50°C
Storage Temperature -20 - 60°C -20 - 60°C
Humidity 0 - 80% RH, Non-Condensing 0 - 80% RH, Non-Condensing
Physical Properties
Dimensions (L x W x H) 12.77 x 9.04 x 2.26 cm
(5.03 x 3.56 x 0.89 in.)		 12.77 x 9.04 x 2.26 cm
(5.03 x 3.56 x 0.89 in.)
Housing Metal Metal
Weight 0.24 kg ( 0.53 lb ) 0.24 kg ( 0.53 lb )
Carton Lot 5 pcs 5 pcs
Note For some of rack mount products, please note that the standard physical dimensions of WxDxH are expressed using a LxWxH format.
$ 142.00
