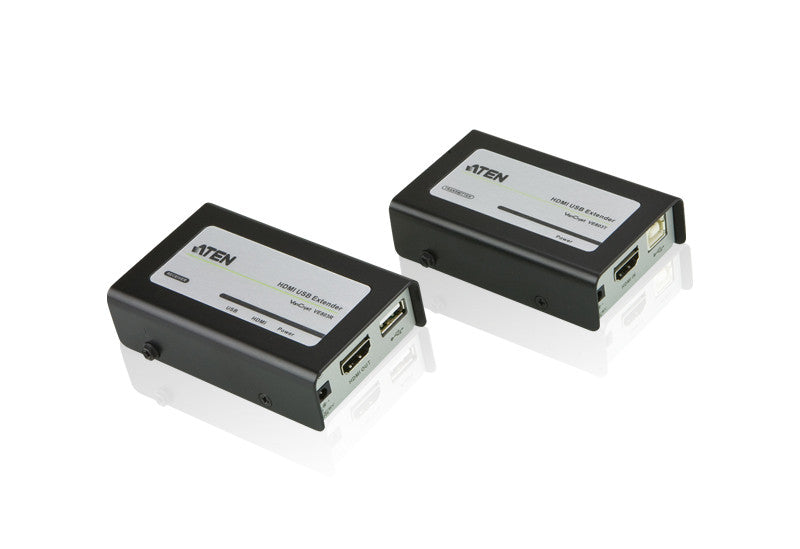

HDMI/USB Cat 5 Extender (1080p@40m) - VE803

HDMI/USB Cat 5 Extender (1080p@40m) - VE803

The VE803 HDMI USB Extender extends an HDMI signal up to 200 feet (60 m) from the HDMI source using two Cat 5e cables. It is capable of sending 1080i signals up to 200 feet (60 m) and 1080p signals up to 130 feet (40 m). The VE803 is equipped with USB connectors which allow you to extend any USB device between the units. The USB feature also provides support for touch panel control, allowing you to control the local HDMI source device from the remote display, or control the remote display through the local unit. The VE803 is ideal for transportation centers, medical facilities, shopping malls or anywhere touch panel control or a kiosk is required. For flexibility and convenience, the VE803 local unit can be powered via the USB cable when connected to an appropriate source device. The VE803 is HDCP compliant, providing an easy and ideal HDMI extender solution for any application.



DIAGRAM

SPECIFICATIONS

Function VE803R VE803T
Video Input
Interfaces N/A 1 x HDMI Type A Female (Black)
Impedance N/A 100 Ώ
Video Output
Interfaces 1 x HDMI Type A Female (Black) N/A
Impedance 100 Ώ N/A
Video
Max. Data Rate 6.75 Gbps (2.25 Gbps Per Lane) 6.75 Gbps (2.25 Gbps Per Lane)
Max. Pixel Clock 225 MHz 225 MHz
Compliance HDMI (3D, Deep Color)
HDCP Compatible		 HDMI (3D, Deep Color)
HDCP Compatible
Max. Resolutions / Distance Up to 1080p@40m; 1080i@60m Up to 1080p@40m; 1080i@60m
Audio
Input N/A 1 x HDMI Type A Female (Black)
Output 1 x HDMI Type A Female (Black) N/A
Control
USB 1 x USB Type A Female 1 x USB Type B Female
EDID Settings EDID Mode: Default EDID Mode: Default
Connectors
Power 1 x DC Jack 1 x DC Jack
Power Consumption DC5V:1.04W:16BTU
DC5V:0.75W:14BTU		 DC5V:1.04W:16BTU
DC5V:0.75W:14BTU
Environmental
Operating Temperature 0 - 50°C 0 - 50°C
Storage Temperature -20 - 60°C -20 - 60°C
Humidity 0 - 80% RH, Non-Condensing 0 - 80% RH, Non-Condensing
Physical Properties
Housing Metal Metal
Weight 0.16 kg ( 0.35 lb ) 0.16 kg ( 0.35 lb )
Dimensions (L x W x H) 9.00 x 5.74 x 2.40 cm
(3.54 x 2.26 x 0.94 in.)		 9.00 x 5.74 x 2.40 cm
(3.54 x 2.26 x 0.94 in.)
Carton Lot 5 pcs 5 pcs
Note For some of rack mount products, please note that the standard physical dimensions of WxDxH are expressed using a LxWxH format.
$ 164.00
