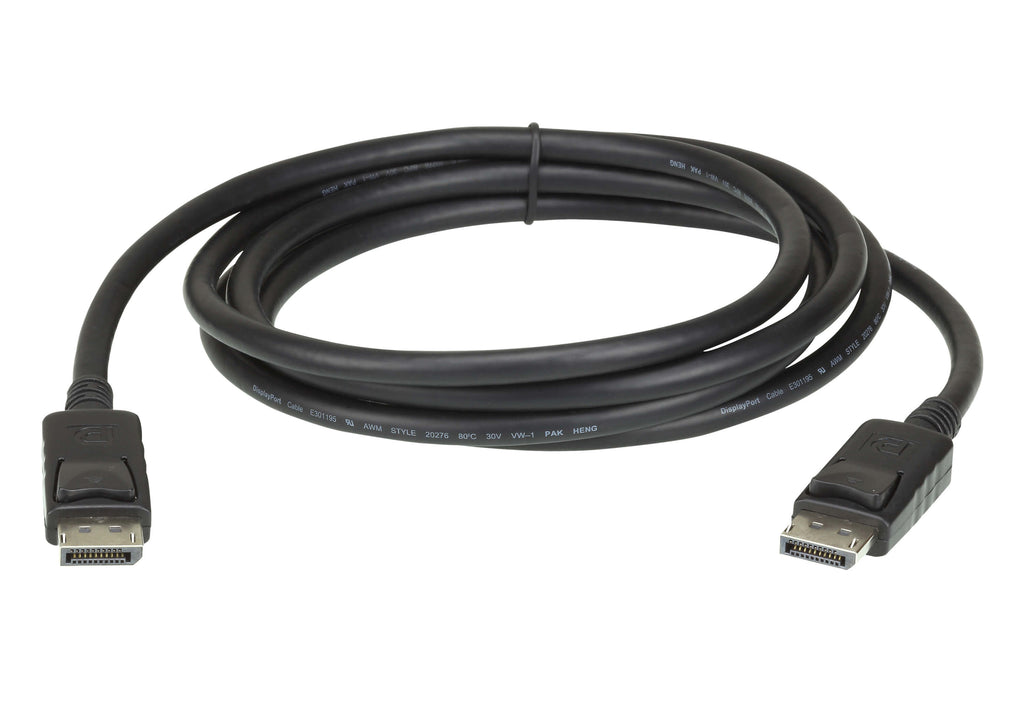

6.6 ft. (2 m) DisplayPort rev.1.4 Cable - 2L-7D02DP

6.6 ft. (2 m) DisplayPort rev.1.4 Cable - 2L-7D02DP

The ATEN DisplayPort rev.1.4 Cable supports 32.4 Gbps data rate with high-definition connectivity and advanced auxiliary channeling. It is a professional connection of your DisplayPort supported (gaming) PC, use in conjunction with ATEN DisplayPort solutions, laptop to an ultra high resolution monitor, or other DisplayPort interface devices. Our DisplayPort rev.1.4 Cable allows for up to 8K Dynamic HDR with 32 channels for high quality video and audio experience. Each connector features latches that provide a secure connection with a release button.



Features

  • Crystal-clear video up to 8K (7680 x 4320 @ 60Hz), backward compatible with 5K (5120 x 2880 @ 60Hz) and 4K (4096 x 2160 @ 120Hz) and previous generations of DP
  • High Bit Rate 3 (HBR3) bandwidth of 32.4 Gbps
  • Multi-Stream Transport (MST) for daisy-chaining multiple monitors
  • Forward Error Correction
  • Display Stream Compression (DSC)
  • 32 uncompressed digital audio channels
  • RoHS compliant



SPECIFICATIONS

Max. Video Resolution 7680x4320@60Hz
Physical Properties
Cable Length 2M
Cable Color Black
Cable Outer Dimension 6.5 ± 0.2mm
Conductor Gauge 30AWG
Conductor Material Tinned Copper
Connector Plating Nickel

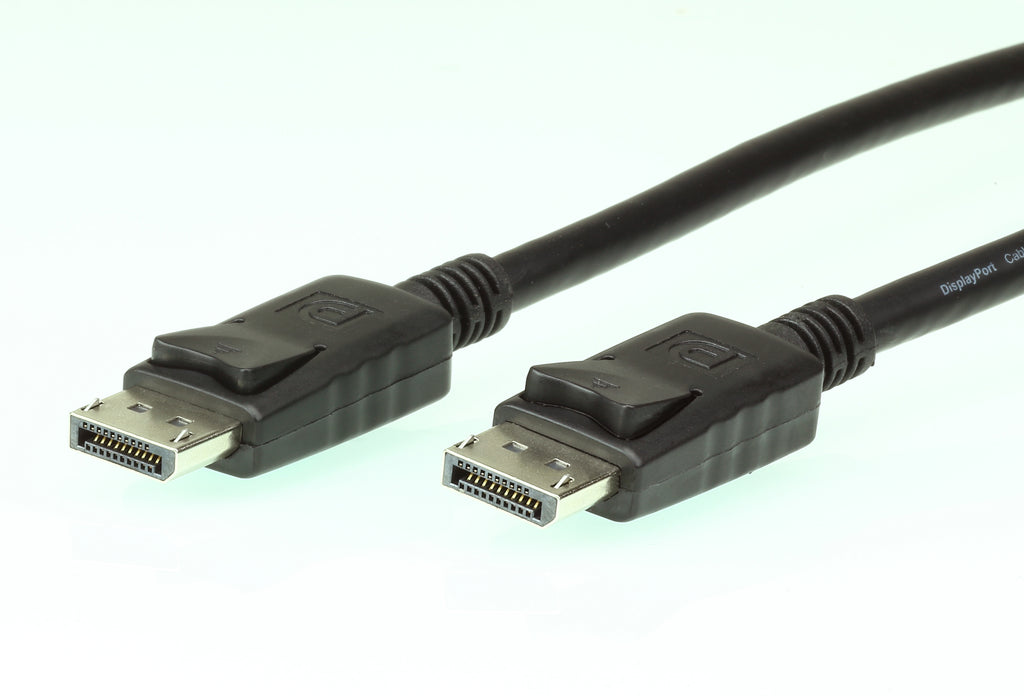

Connector Type DisplayPort (20 pin) Male to Male
Cable Shield Type Aluminum Magnesium Alloy
Cable Jacket Type PVC
Environmental
Operating Temperature 80℃
Rating UL VW-1 (Flame rate), CSA
$ 31.00
