CAMLIVE™+(HDMI to USB-C UVC Video Capture with PD3.0 Power Pass-Through) - UC3021

CAMLIVE™+(HDMI to USB-C UVC Video Capture with PD3.0 Power Pass-Through) - UC3021

CAMLIVE™+ is an UVC video capture designed for mobile streaming. It delivers 4K unencrypted captured profession camera video image to your USB-C/Thunderbolt 3 laptop or Android smartphone for 1080P postediting or live-streaming. The captured video result is suitable for post-editing or live streaming with various popular third-party video-editing software platforms - Open Broadcaster Software (OBS), CameraFi, Xsplit, Twitch, YouTube, Facebook, to name a few. Just set up your camera gear and direct your show from anywhere.

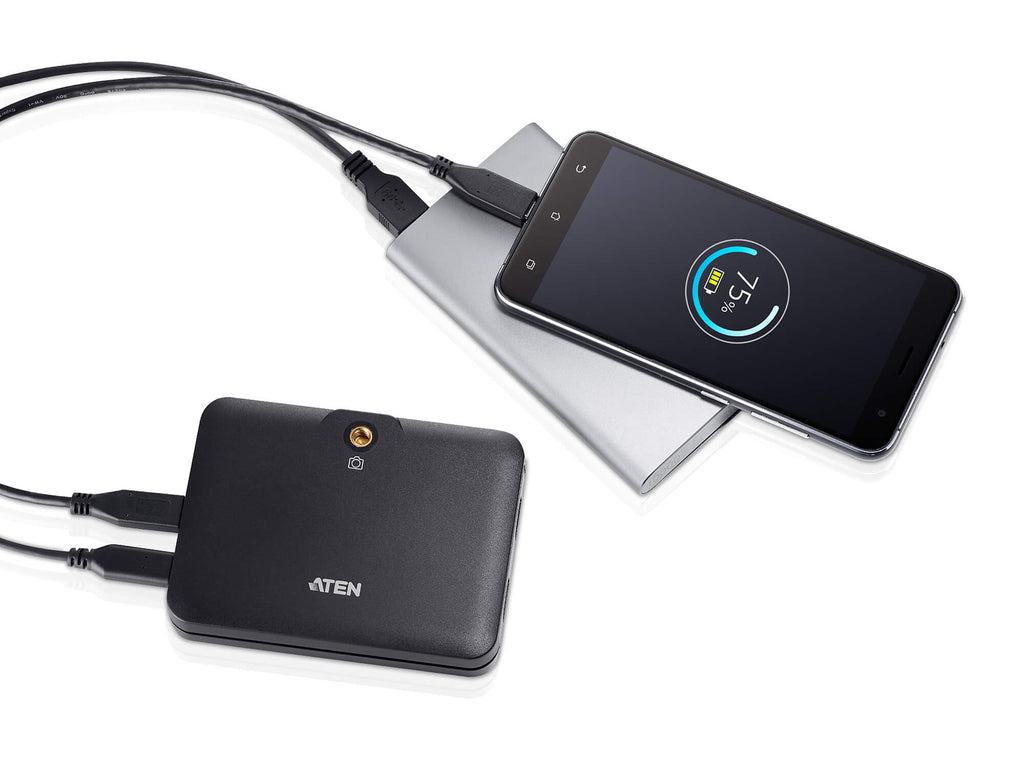

The UC3021 supports 60W USB-C power delivery pass-through which charges your laptop or Android phone, the power profile includes 5V/9V/15V/20V. HDMI loop-out port features latency-free, hassle-free video preview suitable for vlogging and any live events. With camera mount adapter, CAMLIVE™+ can be easily installed on any mounting system.Plug and Play allows eye-popping, high-quality on Windows and Mac systems without driver installation.

Having a compact and aesthetic design , CAMLIVE™+ provides you with an intuitive, high-quality live streaming/video editing experience with style whether you are streaming inside or outside at an event.



PACKAGE CONTENTS

  • 1x CAMLIVE™+HDMI to USB-C UVC Video Capture with Power Pass-Through
  • 1x USB-C to USB-A Cable
  • 1x USB-C to USB-C Cable
  • 1x Camera Mount Adapter
  • 1x Warranty Card
  • 1x User Instructions



FEATURES

  • Supports unencrypted 4K video input for 1080P capture
  • Software free –plug & play designed for PC, Mac and Android platform
  • HDMI loop-out –supports real-time HDMI video preview
  • Up to 60W power charging capability for laptop or Android phone – supports USB-C PD3.0 power profi le include 5V/9V/15V/20V (additional USB-C power adapter is needed)

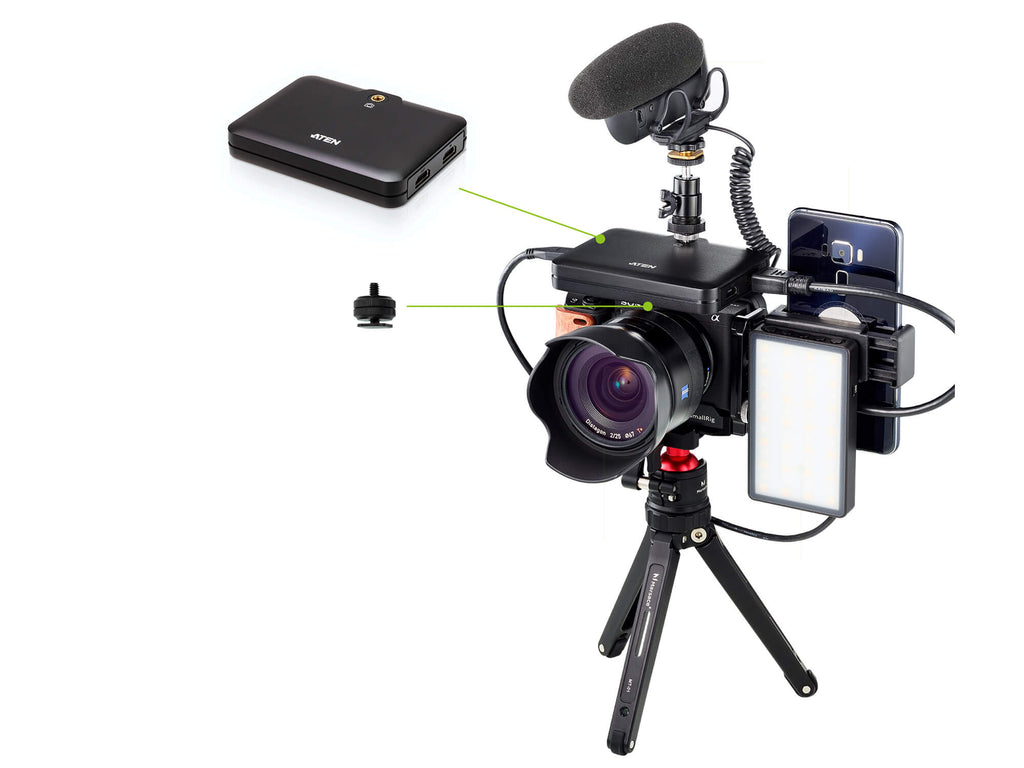

  • Camera mount adapter makes the installation easier and stable
  • Compatible with USB & Thunderbolt 3 (USB-C) specification



DIAGRAM



SPECIFICATIONS

Connectors
Video In 1 x HDMI Type A Female (Black)
Video Output 1 x HDMI Type A Female (Video Loop-out , Black)
USB Port USB 3.2 Gen1 Type-C Female (Black)

(USB-C to USB-C and USB-C to USB-A Cable package included)
Power (Optional) 1 x USB-C Female

Support Power Delivery 3.0 for laptop charging up to 60W, power profiles include 5V, 9V, 12V, 15V, 20V (additional USB-C power adapter needed)*

*For device charging, a Limited Power Source (LPS) certified single port USB-C PD Power Adapter is recommended.
Video Resolution Video input: 2160p60, 1080p60, 720p60 and 480p60, HDMI 2.0 support (unencrypted)

Video Loop-out: 2160p60, 1080p60, 720p60 and 480p60, HDMI 2.0 support (unencrypted)
Audio Sampling 16-bit PCM audio, 44.1KHz and 48KHz
Output Uncompressed 1080p60, 720Pp60 & 480p60 UVC video stream with UAC audio
(Uncompressed video stream is only available on USB3.1 connection)
Power Consumption 5V:3WBTU
Minimum Hardware Requirements PC/Mac:
CPU: Intel® i3 Dual Core 2.8Ghz or higher
RAM: 4GB or more
One USB-C interface or USB-A interface

Smartphone:
Android device with UVC support and USB-C interface*

*For detail UVC compatible device list, please refer to following info revealed by third party App. https://www.camerafi.com/supported-devices/
OS Support Windows 10 and above
Mac OS X 10.13 and above
Android 5.0.1 and above with UVC support
Environmental
Operating Temperature 0 - 40 ºC
Storage Temperature -20 – 60 ºC
Humidity 0 - 80% RH, Non-Condensing
Physical Properties
Housing Plastic
Weight 0.09 kg ( 0.2 lb )
Dimensions (L x W x H) 11.49 x 8.49 x 2.00 cm
(4.52 x 3.34 x 0.79 in.)
Note For some of rack mount products, please note that the standard physical dimensions of WxDxH are expressed using a LxWxH format.

$ 123.00

$ 89.99
