VC965

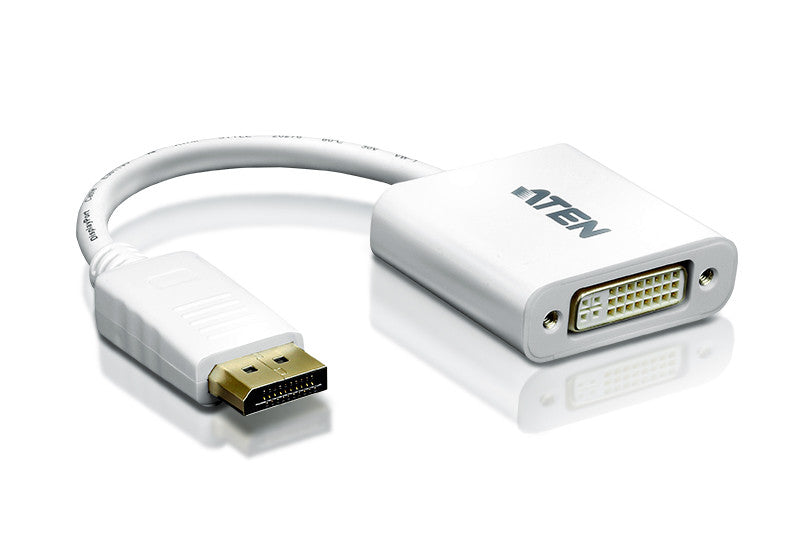

DisplayPort to DVI Adapter - VC965

The VC965 is a DisplayPort to DVI adapter, allowing you to connect your device’s DisplayPort output to the DVI input of a TV or other display.

The VC965 provide a cost-effective yet high performance signal conversion solution. This adapter is therefore perfect for computers and notebooks, supporting display resolutions of up to 1080p (1920x1080@60Hz).



PACKAGE CONTENTS

  • 1x DisplayPort to DVI Adapter



FEATURES

  • Converts DisplayPort signals to DVI output
  • DisplayPort 1.2 a compliant
  • Supports VGA, SVGA, XGA, SXGA, UXGA and resolutions up to 1080p (HDTV)
  • No software or driver installation required



DIAGRAM



SPECIFICATIONS

Video Input
Interfaces 1 x DisplayPort Male (White)
Video Output
Interfaces 1 x DVI-I* Female (White)
*Only support digital signal transmission
Video
Max. Pixel Clock 165 MHz
Max. Resolution Input up to 4096 x 2160@60Hz (4:4:4)
Output up to 1920 x 1080
Compliance DP 1.2
Environmental
Operating Temperature 0 - 50 ºC
Storage Temperature -20–60 ºC
Humidity 0 - 80% RH, Non-Condensing
Physical Properties
Housing Plastic
Weight 0.04 kg ( 0.11 lb )
Dimensions (L x W x H) 18.00 x 4.50 x 1.50 cm
(7.09 x 1.77 x 0.59 in.)
Carton Lot 40 pcs
Note For some of rack mount products, please note that the standard physical dimensions of WxDxH are expressed using a LxWxH format.

$ 17.90

$ 9.43
