VC981

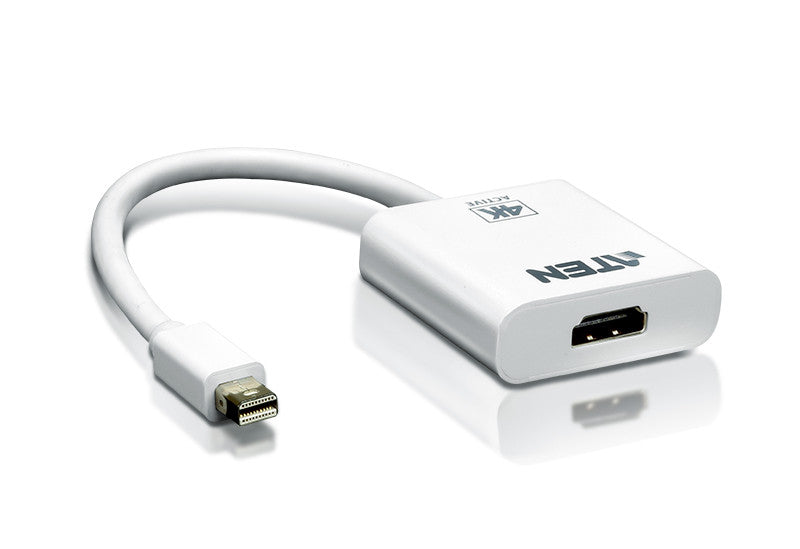

Mini DisplayPort to 4K HDMI Active Adapter - VC981

The VC981 is an active Mini DisplayPort to HDMI adapter that allow you to connect your Mini DisplayPort/DisplayPort output device to the HDMI input of a 4K TV or other display.

The ATEN VC981 is an active adapter, featuring advanced chips which ensure stable video signal conversion even when the video source does not support dual-mode DisplayPort (DP++).* Moreover, support for resolutions up to 4K make this adapter ideal for users who require a high performance signal conversion solution.



PACKAGE CONTENTS

  • 1x VC981 4K Mini DisplayPort to HDMI Active Adapter



FEATURES

  • Converts Mini DisplayPort signals to HDMI output
  • Supports VGA, SVGA, XGA, SXGA, UXGA, 1080p and resolutions up to 4K UHD
  • Active adapter – features an advanced chip which ensures stable video signal conversion even when the video source does not support dual-mode DisplayPort (DP++)*
  • Supports AMD Eyefinity™ Technology (multi-screen setups)
  • Audio supported
  • No software or driver installation required



DIAGRAM



SPECIFICATIONS

Video Input
Interfaces 1 x Mini DisplayPort Male (White)
Video Output
Interfaces 1 x HDMI Type A Female (Black)
Video
Max. Pixel Clock 297 MHz
Max. Resolution 3840 x 2160@30Hz, 1920 x 1200@60Hz.
Compliance DP1.2a, HDMI(3D, Deep Color, 4K), HDCP 1.3
Audio
Output 1 x HDMI Type A Female (Black)
Environmental
Operating Temperature 0 - 50 ºC
Storage Temperature -20–60 ºC
Humidity 0 - 80% RH, Non-Condensing
Physical Properties
Housing Plastic
Weight 0.04 kg ( 0.09 lb )
Dimensions (L x W x H) 17.50 x 4.50 x 1.50 cm
(6.89 x 1.77 x 0.59 in.)
Carton Lot 40 pcs
Note For some of rack mount products, please note that the standard physical dimensions of WxDxH are expressed using a LxWxH format.

$ 35.90

$ 20.07
